RTO Combustion Furnace Pneumatic Gas Butterfly Valve Wear Resistance For Hydroelectric And Mining Industries

محل منبع چین
نام تجاری FABIA
گواهی ISO9001,BV,CCS,DNV
شماره مدل 2 اینچ 100 اینچ
سند بروشور محصول PDF
مقدار حداقل تعداد سفارش 1 مجموعه
قیمت قابل مذاکره
جزئیات بسته بندی کارتن / جعبه های چوبی
زمان تحویل 15-30 روز کاری
شرایط پرداخت L/C، D/A، D/P، T/T، MoneyGram، Western Union
قابلیت ارائه 100-1000 ست در هفته

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
نام محصول شیر پروانه ای گاز پنوماتیک برنامه Valve تهویه
مواد سوپاپ فولاد ضد زنگ اتصال شیر فلنج دار
عملکرد شیر پنوماتیک گواهینامه شیر BV، DNV، CCS
فشار سوپاپ ≤0.25MPa آب بند دریچه فولاد ضد زنگ
اندازه سوپاپ 2-100 اینچ دمای سوپاپ 500 ℃
نوع سوپاپ پروانه
برجسته کردن

دریچه پروانه گاز پنوماتیک,دریچه پروانه هیدرو الکتریکی,صنایع معدن شیر پروانه

,

Hydroelectric Butterfly Valve

,

Mining Industries Butterfly Valve

پیام بگذارید
توضیحات محصول

RTO Combustion Furnace Pneumatic Gas Butterfly Valve Wear Resistance For Hydroelectric And Mining Industries



1. Description:



In the Marine field, FB-D-3 series butterfly valves are mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen

oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.

In addition, FB-D-3 series butterfly valves are also widely used in the road industry, such as the exhaust gas exhaust pipe

system produced by the boiler in steel smelting, the catalytic combustion equipment pipe system in VOCs (RTO combustion furnace) and the exhaust gas pipe system produced by other combustion equipment.



2. Specification:



FABIA Valve Parameter List
Valve type: Flange type heavy-duty ventilation butterfly valve
Size: 2inch ~ 100 inch
Material:

316/316L/304/304L/ Corten

Connection type: Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: ≤0.25Mpa
Temperature: -≤500℃
Model: FB-D-3..........



3. Features:



  • Simple and light in structure
  • Suitable for low pressure air or other gas flow, pressure control and high temperature gas
  • the main structural components of the valve are welded
  • CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
  • High Efficiency Emission Reduction: Optimized design significantly reduces ship emissions, complying with stringent environmental regulations.
  • Durable and Reliable: Made of high-quality materials with a robust design to ensure long-term stable operation, reducing maintenance frequency and costs.
  • Smart Control: Equipped with advanced control systems for automated operation, enhancing operational efficiency and safety.
  • Multiple Safety Guarantees: Incorporates multiple layers of safety protection mechanisms to ensure safe and reliable valve operation.

  • Global Standard Certification: Certified by international authorities, ensuring product quality and performance meet global standards.

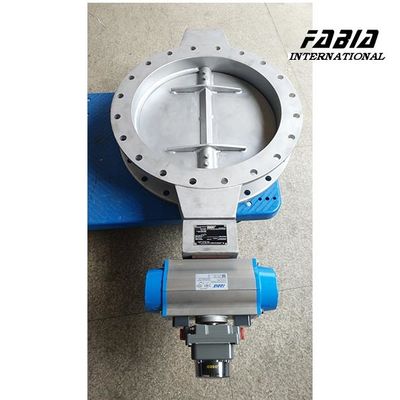

RTO Combustion Furnace Pneumatic Gas  Butterfly Valve Wear Resistance For Hydroelectric And Mining Industries 0

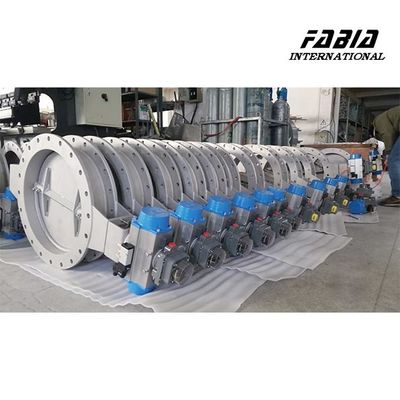

RTO Combustion Furnace Pneumatic Gas  Butterfly Valve Wear Resistance For Hydroelectric And Mining Industries 1

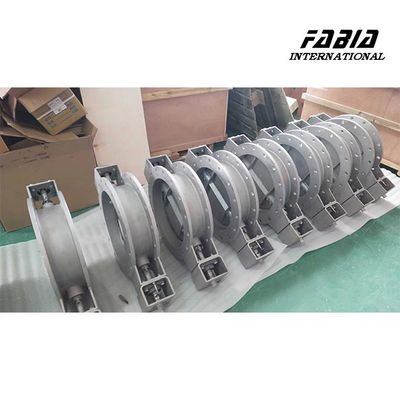

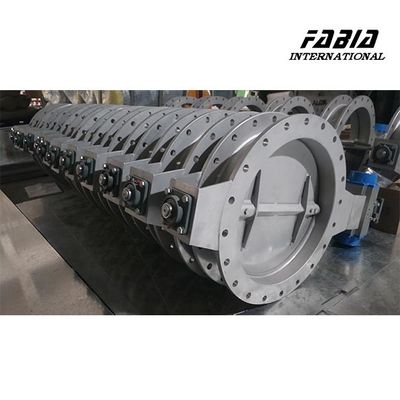

RTO Combustion Furnace Pneumatic Gas  Butterfly Valve Wear Resistance For Hydroelectric And Mining Industries 2
